Bucket Capacity
1 m³
Operating Weight
28 100 kg
Rated Power
165 kWh
BATTERY TYPE
LFP
Product Features

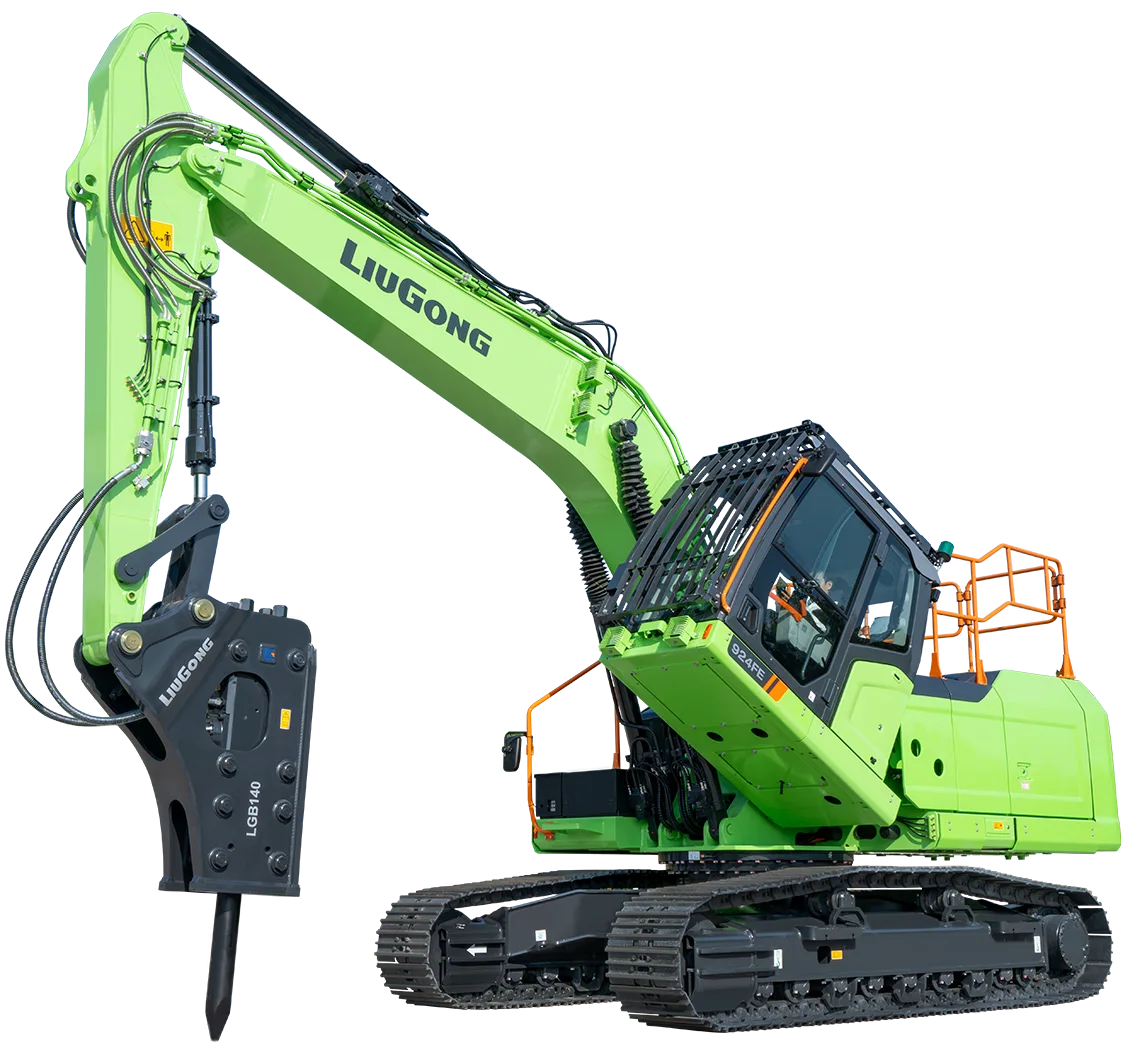

- The 924FE electric excavator is a special tunnel electric excavator launched by Liugong on the new generation of electric excavator technology platform, combined with the particularness of tunnel construction, such as many rocks, high strength, diverse construction, environmental hazards, low oxygen content, and emission limits.
- The whole machine adopts full electronic control hydraulic system, internationally renowned three-power matching adjustment, new cockpit, comprehensive strengthening, comprehensive protection design, etc., to meet the tunnel construction of high strength, multi-operation, low emission, high comfort operation needs.
Specification
924FE Standard
Operating weight
28 100 kg
Rated Storage Capacity
423 kWh
Rated Power
165 kW
Standard Bucket Capacity
1 m³
Arm Digging Force
105 kN
Bucket Digging Force
165 kN
Drawbar Pull
200 kN
Max. Digging Reach
9,890 mm
Max. Dumping Height
7,020 mm
Shipping Dimension L*W*H
9910*3090*3428 mm
Maximum hinge pin height
4,156 mm (13'8")
924FE High Rise Cab
Operating weight
28 100 kg
Rated Storage Capacity
423 kWh
Rated Power
165 kW
Standard Bucket Capacity
1 m³
Arm Digging Force
105 kN
Bucket Digging Force
165 kN
Drawbar Pull
200 kN
Max. Digging Reach
9,890 mm
Max. Dumping Height
7,020 mm
Shipping Dimension L*W*H
9910*3090*3428 mm
Maximum hinge pin height
4,156 mm (13'8")
924FE Tilting Cab
Operating weight
26 500 kg
Rated Storage Capacity
423 kWh
Rated Power
165 kW
Standard Bucket Capacity
1 m³
Arm Digging Force
105 kN
Bucket Digging Force
165 kN
Drawbar Pull
200 kN
Max. Digging Reach
9,890 mm
Max. Dumping Height
7,020 mm
Shipping Dimension L*W*H
9910*3090*3428 mm
Maximum hinge pin height
4,156 mm (13'8")
